PVS-31D/Elbit F5032 White Phosphor

**Lead times are 90-120 days currently.**



Elbit White Phosphor F5032

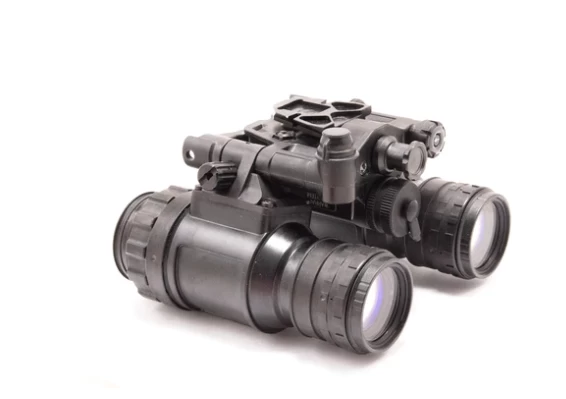

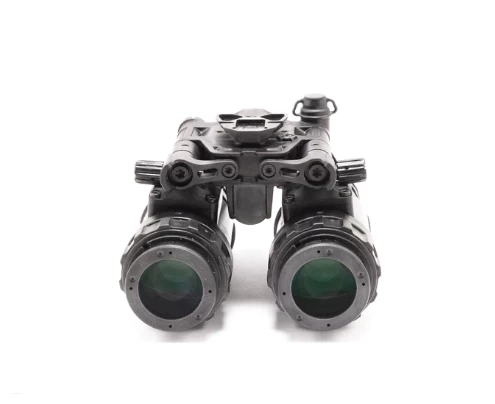

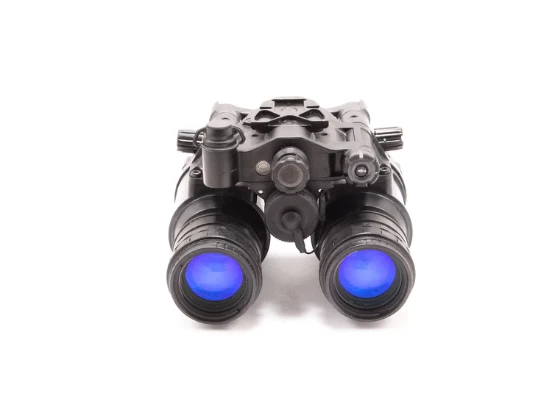

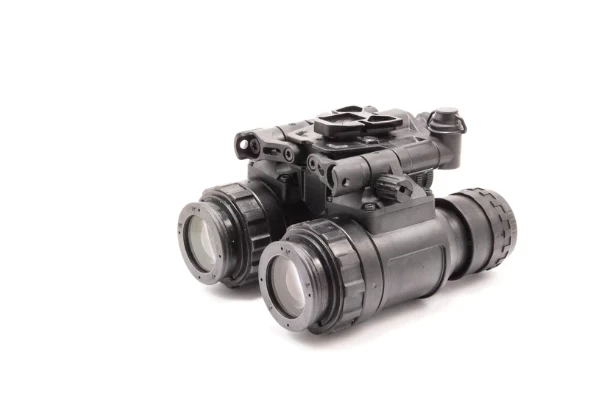

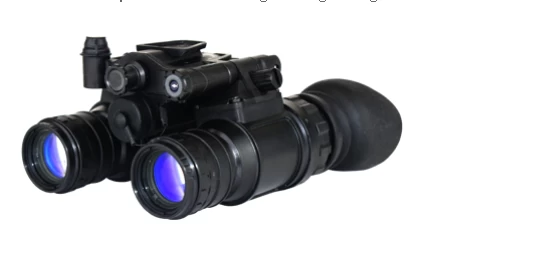

The Elbit F5032 (PVS-31D) is an extremely light weight binocular night vision goggle currently being fielded for US military applications. The unit features an articulating housing with manual gain, on board illuminator, incredible tube resolution, and adjustable diopters.

The Elbit F5032 is run off of an onboard AA battery which provides 30hrs off of a single lithium AA battery. The unit also can accept an optional Elbit Battery Pack. Because of the light weight design, users do not experience normal neck fatigue like with heavier legacy systems. This eliminates the need to have extremely heavy counterweight systems that greatly increase the overall weight of the hemet system. The single power knob turns the unit on / off, controls the onboard illuminator, and controls the gain adjustment.

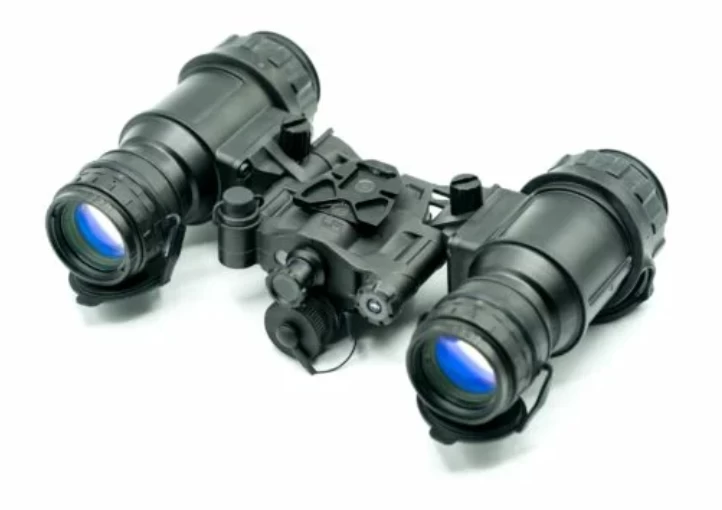

The Elbit 5032 has an articulating housing with independently rotating optical pods. This lets the user deploy both tubes or a single tube. This is especially helpful when users are deploying their 5032’s while using a thermal device or reading natural lighting conditions. The housing on the Elbit 5032 features individual pod shut off when articulated. This feature protects the tubes from accidental light damage and prevents glow back on the users face. The optical pod articulation also lets users stow their goggles without having to flip the goggles up on the helmet mount. This reduces snag hazard and additional height added to the helmet. This is especially helpful while driving and moving in and out of tight spaces.

Tube Specs

The Elbit F5032 uses white phosphor thin-filmed tubes at varying tube specifications. We order our F5032’s standard with 2k minimum FOM & 2376 minimum FOM thin-filmed White Phosphor tubes for upmost image quality and low light performance. These White Phosphor tubes provide incredible clarity, low light and high light performance, and increased depth perception. These are Elbit’s most advanced intensifier tubes and offers significant performance increases over legacy green phosphor systems.

2000 minimum FOM Thin-Filmed White Phosphor:

FOM: 2,000  minimum
Milspec Spot Spec: can have max 4 spots per tube larger than .003″, no spots larger than .003″ in zone 1.  Spots </= .003″ are acceptable.
2376 minimum FOM Thin-Filmed White Phosphor:

FOM: 2,376  minimum
Milspec Spot Spec: can have max 4 spots per tube larger than .003″, no spots larger than .003″ in zone 1.  Spots </= .003″ are acceptable.

All sales are final. Orders canceled before ship are subject to a 20% restocking fee. All ITAR ragulations apply.
