LAC PVS-14: L3 Harris Aviation Spot Spec

Current Lead Times

L3 Unfilmed White Phosphor 20AU : Approximately 90-120 Days

L3 Unfilmed White Phosphor 24AU : In Stock

L3 Unfilmed White Phosphor High FOM : In Stock



Licentia Arms PVS-14: L3Harris

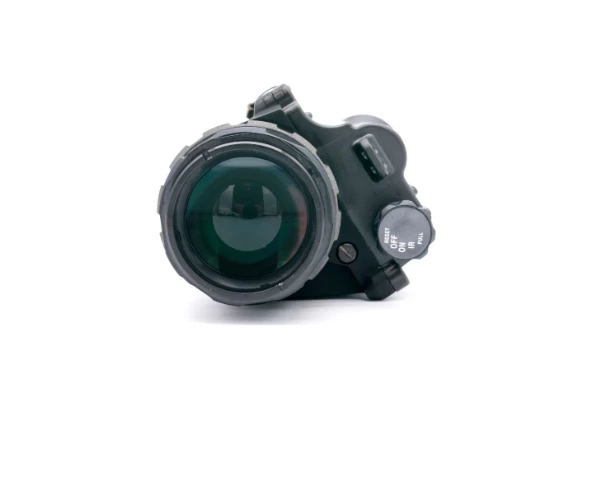

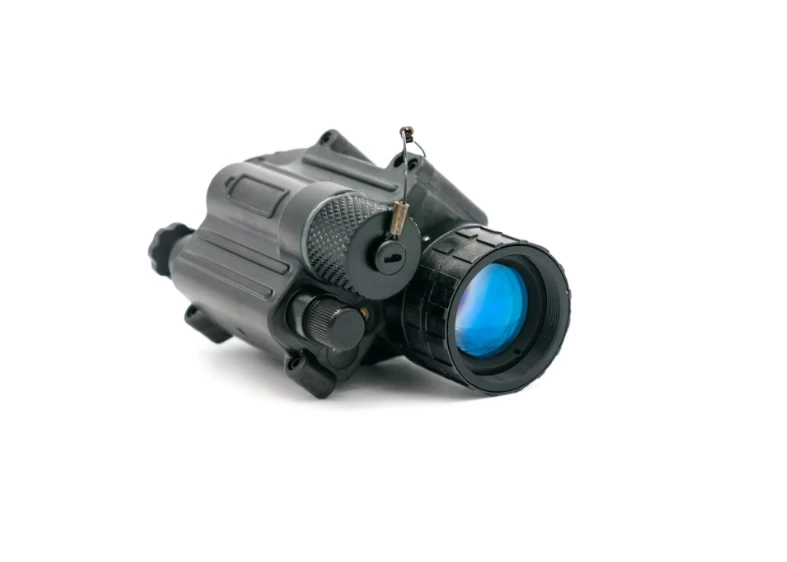

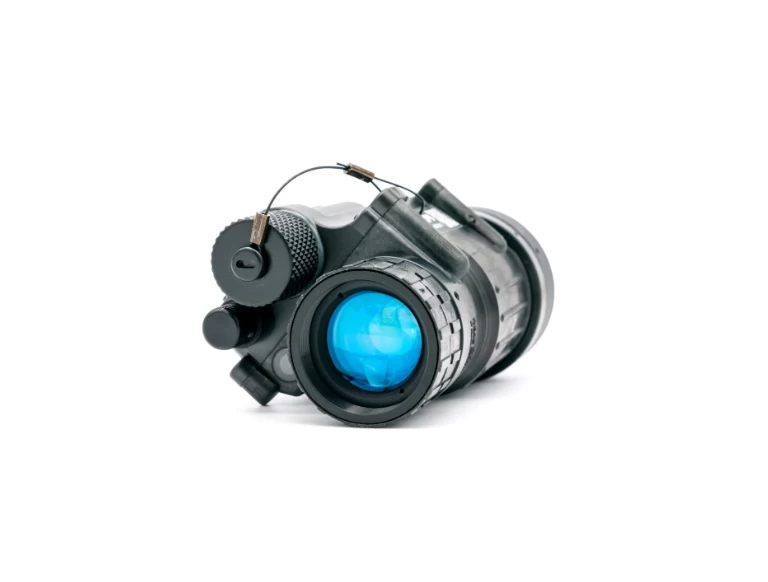

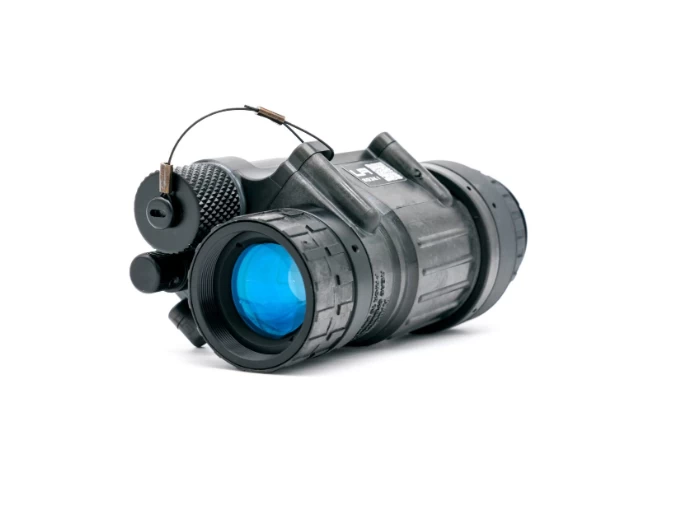

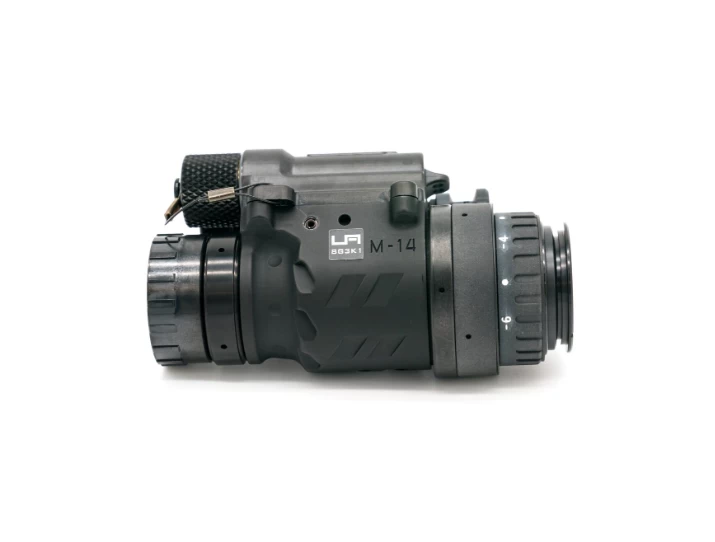

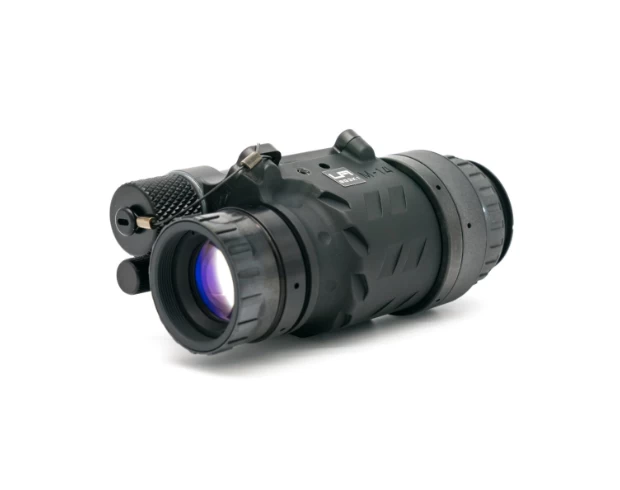

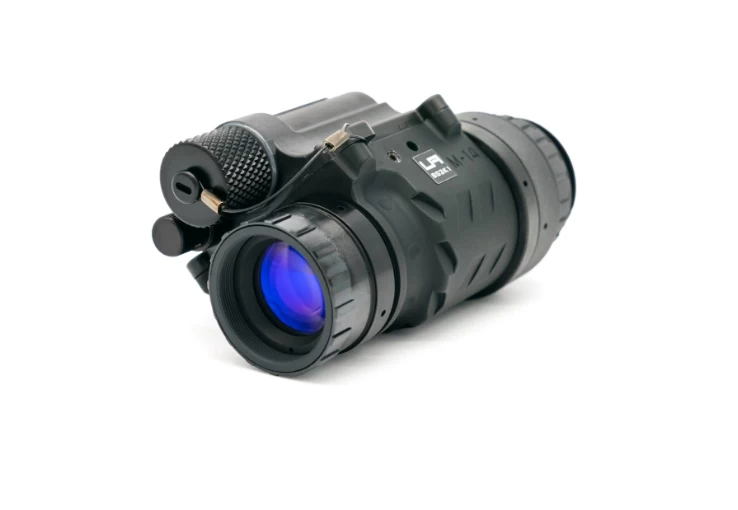

The Licentia Arms Co. L3Harris PVS-14 is one of the most economical and versatile night vision devices available. A PVS-14 can be helmet mounted or used as a handheld device. When helmet mounted, the user has the option of choosing which eye they prefer to use with device. This leaves the user with one unaided eye. An unaided eye is beneficial in environments where the user must read ambient lighting conditions. As a result, the user has an increased ability to gauge true lighting conditions. Because of this the PVS-14 is an excellent choice for urban duty use and those seeking the versatility that a monocular brings.

Gain Control

PVS-14s use 11769 style tubes. 11769 tubes have a gain lead off of the tube for manual gain. This is a huge benefit when moving between varying lighting conditions as the brightness can be adjusted to the desired level.



Tube Specs

L3 Unfilmed White Phosphor – 20UA:

·      FOM: 1792 min.

·      Spot Spec: This option is manufactured with L3 20UA aviation grade tubes. This is the strictest spot spec available from L3Harris. These tubes do not have any spots >.003″ in zone 1 or zone 2. Spots </= .003″ are acceptable.

L3 Unfilmed White Phosphor – 24UA:

·      FOM: 2160 min.

·      Spot Spec: This option is manufactured with L3 24UA aviation grade tubes. This is the strictest spot spec available from L3Harris. These tubes do not have any spots >.003″ in zone 1 or zone 2. Spots </= .003″ are acceptable.

L3 Unfilmed White Phosphor – High FOM:

·      FOM: 2500 min FOM.

·      Spot Spec: This option is manufactured with L3 aviation grade tubes. This is the strictest spot spec available from L3Harris. These tubes do not have any spots >.003″ in zone 1 or zone 2. Spots </= .003″ are acceptable.

·      These units are hand selected for the absolute best image quality and spot spec.



All Sales are final. Any orders canceled before shipment will have a 20% restocking fee. All ITAR regulations apply.
