AGM PVS-14

We will call you before processing orders to confirm options.

NL1 – Gen 2+ Low Spec Green Phosphor

NW1 – Gen 2+ Low Spec White Phosphor

3AL1 – Gen 3 1400-1800 FOM Green Phosphor

3AW1 – Gen 3 1400-1800 FOM White Phoshpor

3APW – Gen 3 2000+ FOM White Phosphor

Description:

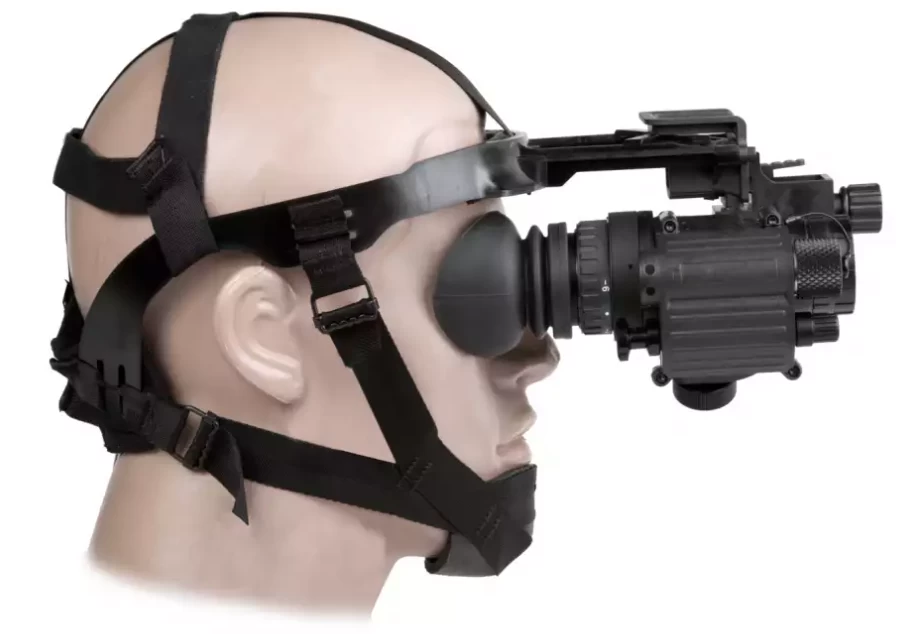

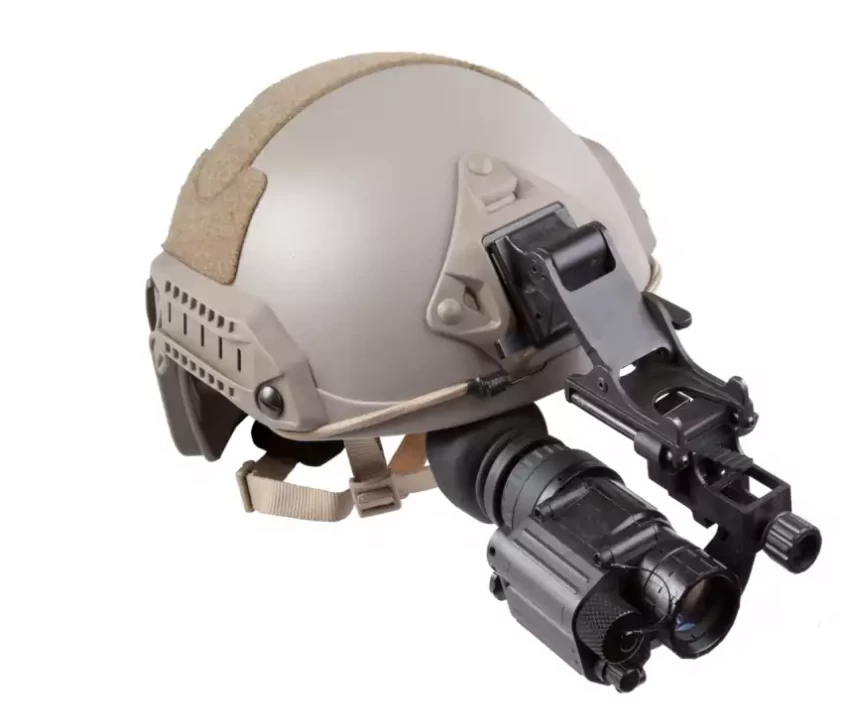

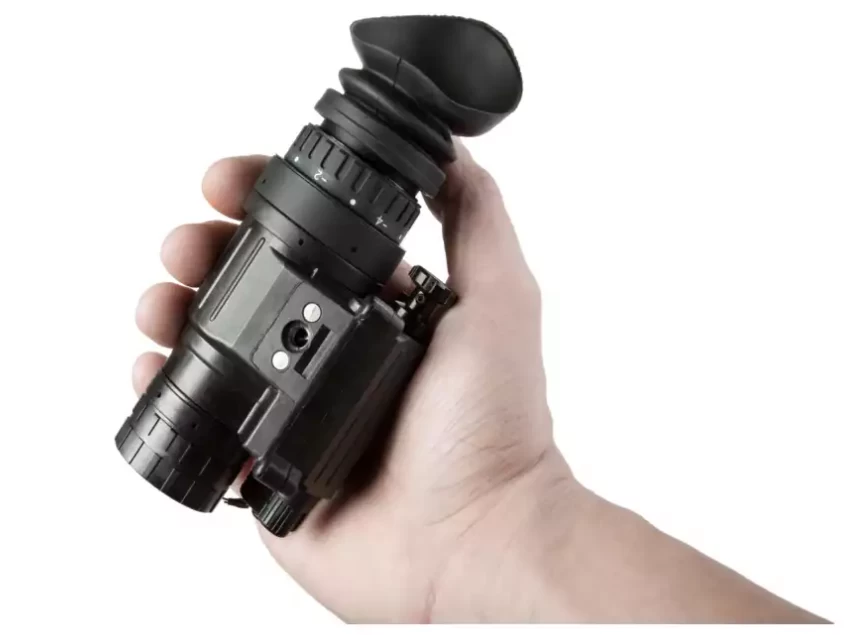

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

Specs:

Magnification                                                    1x (3x and 5x optional)

Lens System                                                       26 mm; F/1.2

FOV                                                                       40°

Focus Range                                                       0.25 m to infinity

Diopter Adjustment                                        -6 to +4 dpt

Led Indicators                                                    Low battery; IR On; Excessive light conditions

Infrared Illuminator                                         Yes

Manual Gain Control                                       Yes

Bright Light Cut-Off                                         Yes

Automatic Shut-Off System                         Yes

Battery Type                                                      One AA Alkaline

Battery Life (Operating)                                Up to 50 hours at 20°C

Operating Temperature Range                   -51° C to +49° C (-60° F to 120° F)

Storage Temperature Range                       -51° C to +85° C (-60° F to 185° F)

Weight                                                                 0.32 kg (12.4 oz)

Overall Dimensions                                         114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)

Package Includes                                              Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery



Product is warrantied by the manufacturer for 3 years. All night vision devices are export restricted and can only be shipped in the US. If you are an international customer looking for a bulk purchase, please reach out to [email protected]. All night vision sales are final.
