AGM NVG-40

**If not in stock, orders can take up to 30 days. If you would like to pick your tubes, please reach out, but this can add lead time.**

Tube Specs:

NL1: Low Spec Photonis Green Phoshpor Tube

NW1: Low Spec Photonis White Phoshpor Tube

3AL1: Mid Spec Elbit or L3 Green Phosphor Tube

3AW1: Mid Spec Elbit or L3 White Phosphor Tube

3APW: High Performance Elbit or L3 White Phosphor Tube – Minimum 2000 FOM



Description:

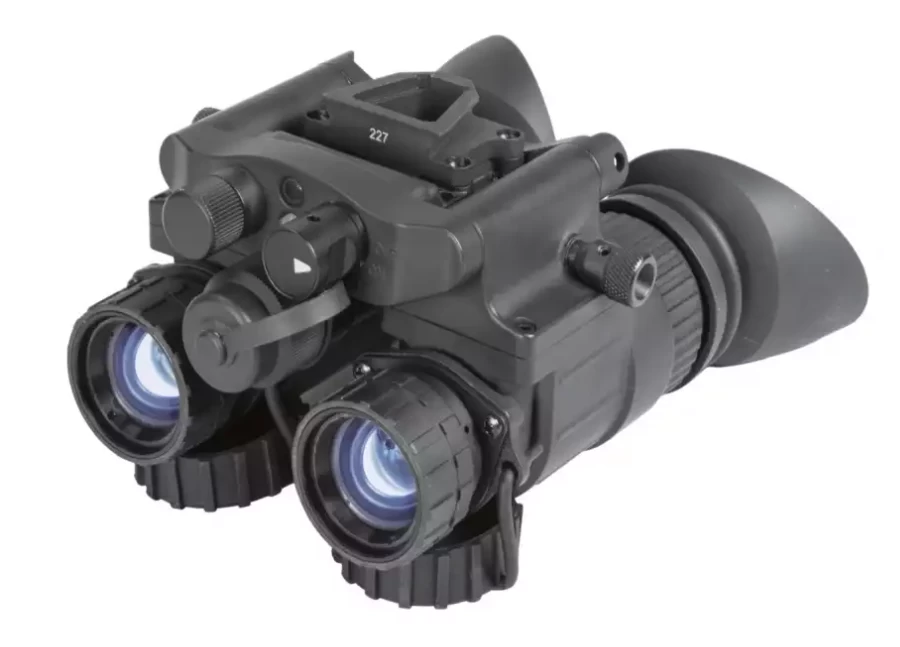

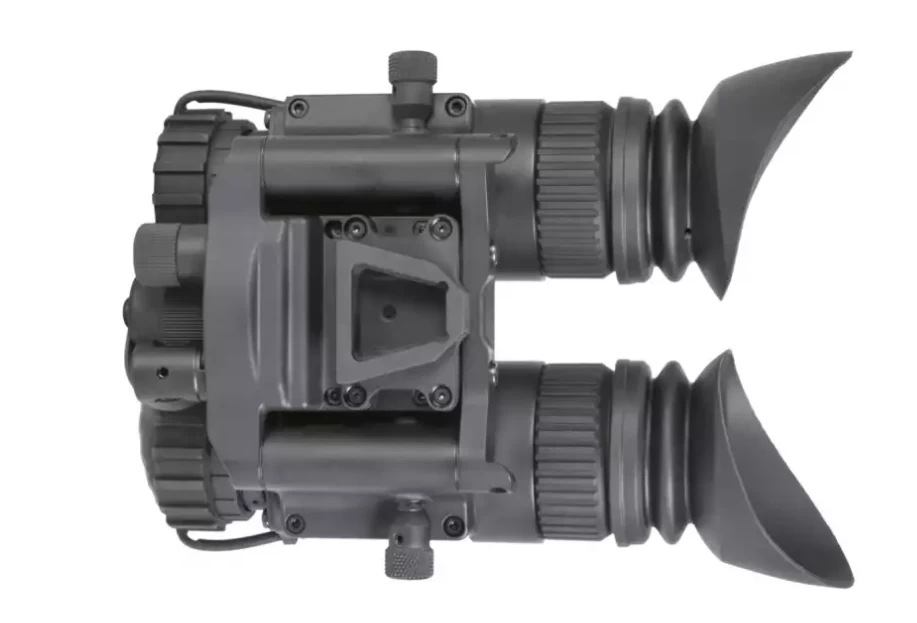

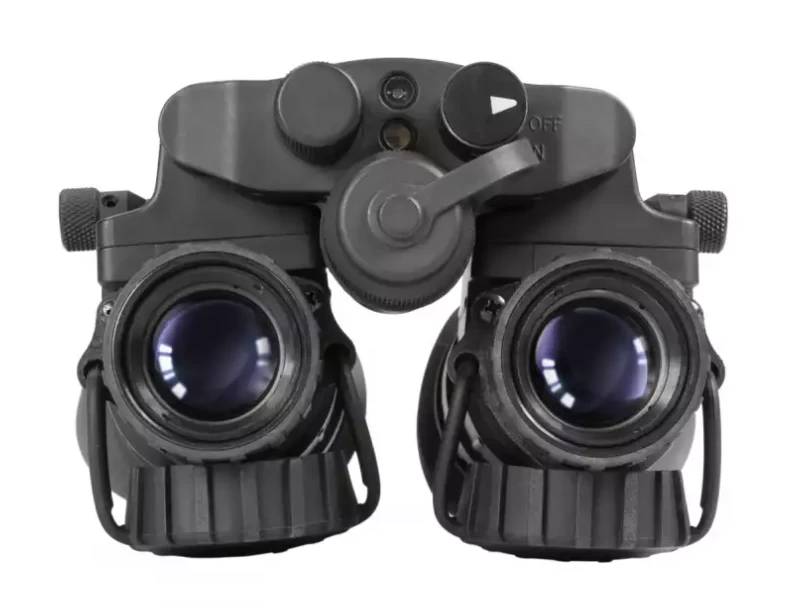

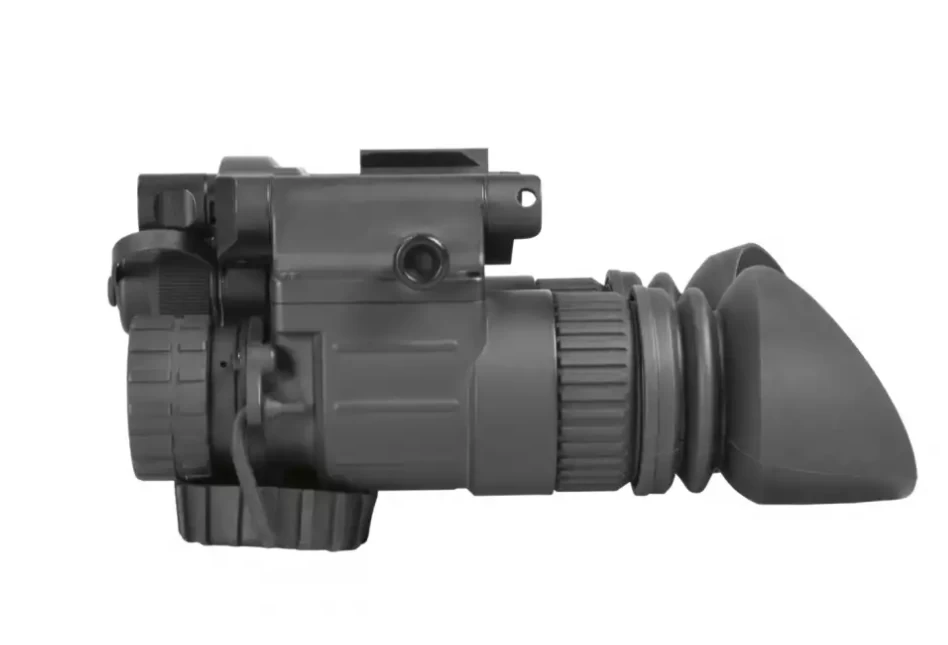

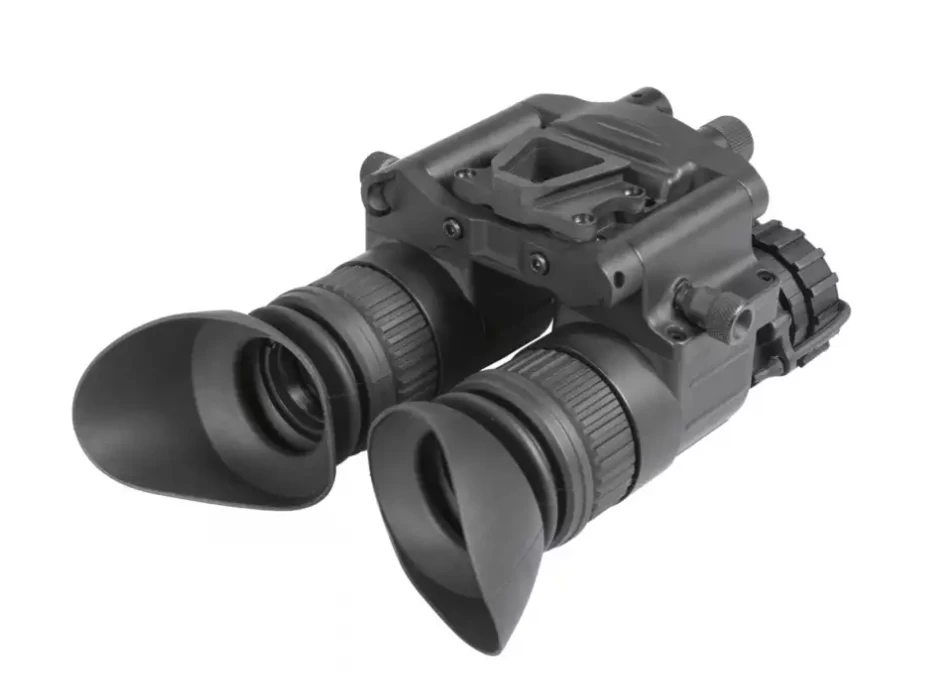

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark. With articulation and IDP stops built in, this is a full featured unit at very competitive pricing.

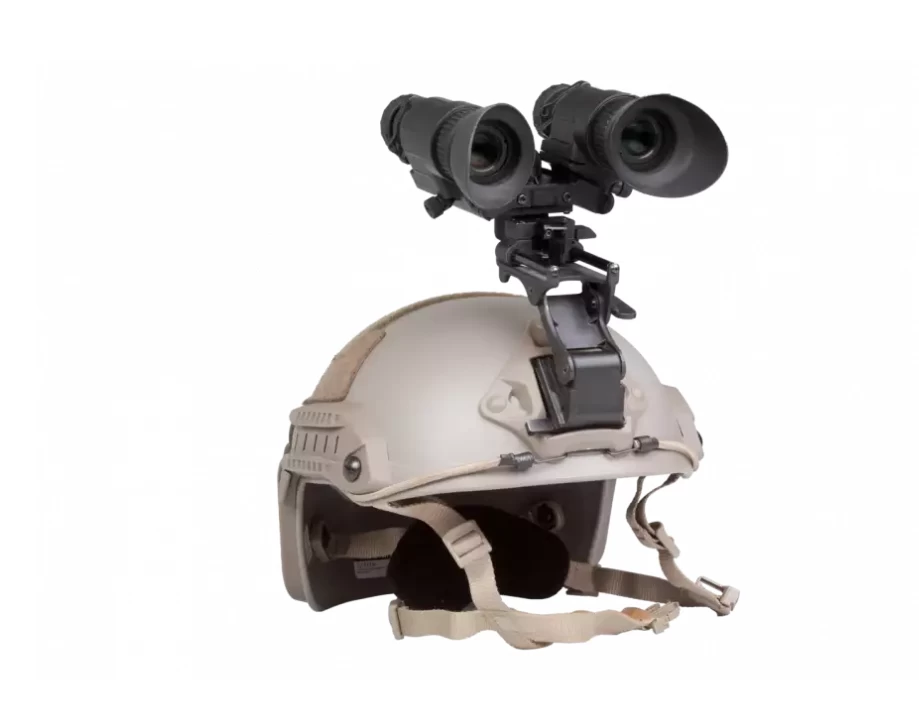

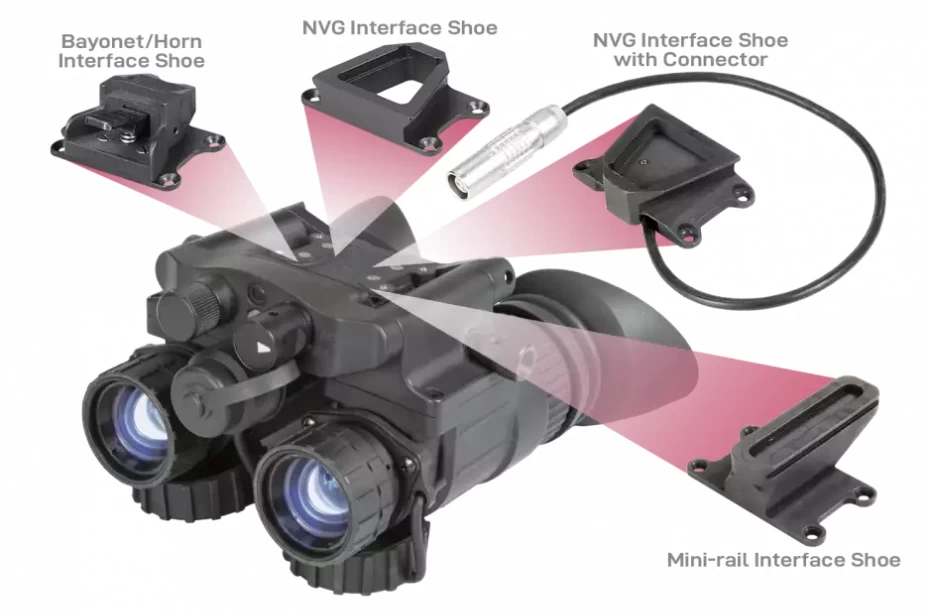

NVG Interface Shoe (preinstalled) is used for installing the NVG to either a standard dovetail type headset or helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

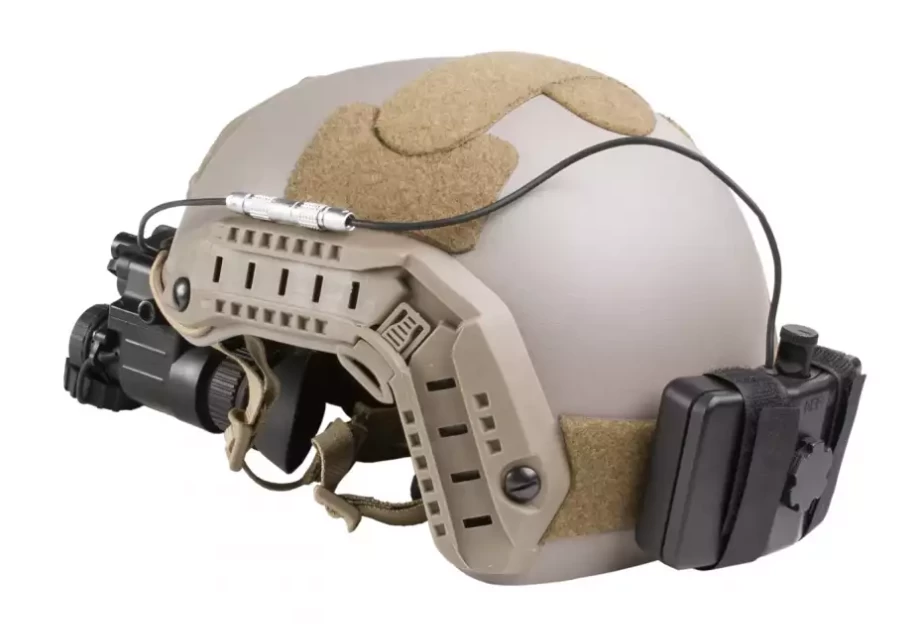

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

Specs:

Magnification                                                    1x

Lens System                                                       27 mm; F/1.3

FOV                                                                       40°

Focus Range                                                       0.25 m to infinity

Eye Relief                                                            25 mm

Diopter Adjustment                                        -6 to +2 dpt

Led Indicators                                                    Low battery; IR On; Excessive light conditions

Infrared Illuminator                                         Yes

Manual Gain Control                                       Yes

Bright Light Cut-Off                                         Yes

Automatic Shut-Off System                         Yes

Battery Type                                                      One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)                                Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range                   -40° C to +50° C (-40° F to 122° F)

Storage Temperature Range                       -50° C to +70° C (-60° F to 158° F)

Weight                                                                 645 g. (1.42 lbs)

Overall Dimensions                                         115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

Package Includes                                              Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual



Product is warrantied by the manufacturer for 3 years. All night vision devices are export restricted and can only be shipped in the US. If you are an international customer looking for a bulk purchase, please reach out to [email protected]. All night vision sales are final.
