AGM Comanche-40 3APW Clip On Site 2000+FOM

**Lead times are around 30 days if not in stock due to market demand of image intensifier tubes. Please note these cannot be exported without proper licenses.**

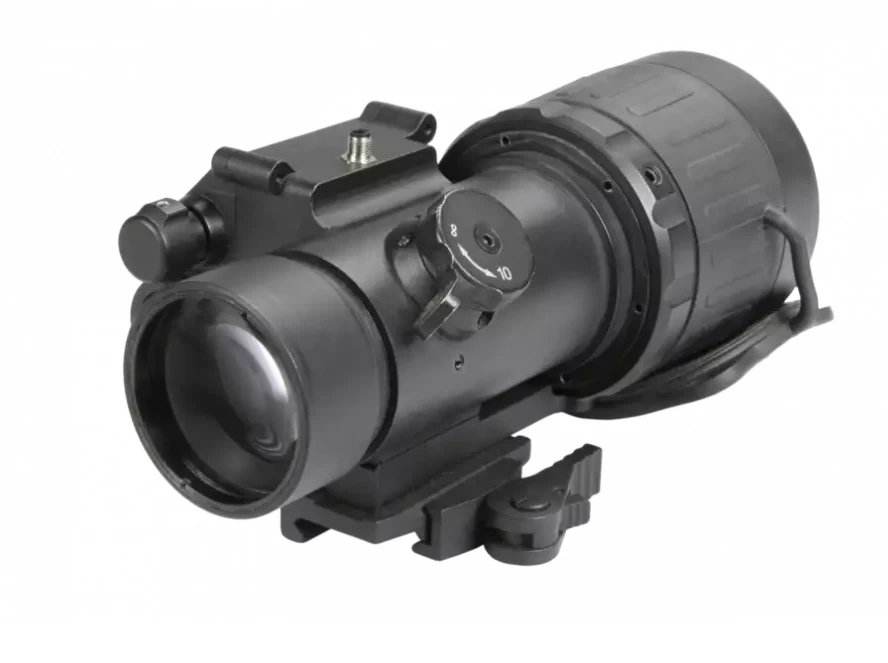

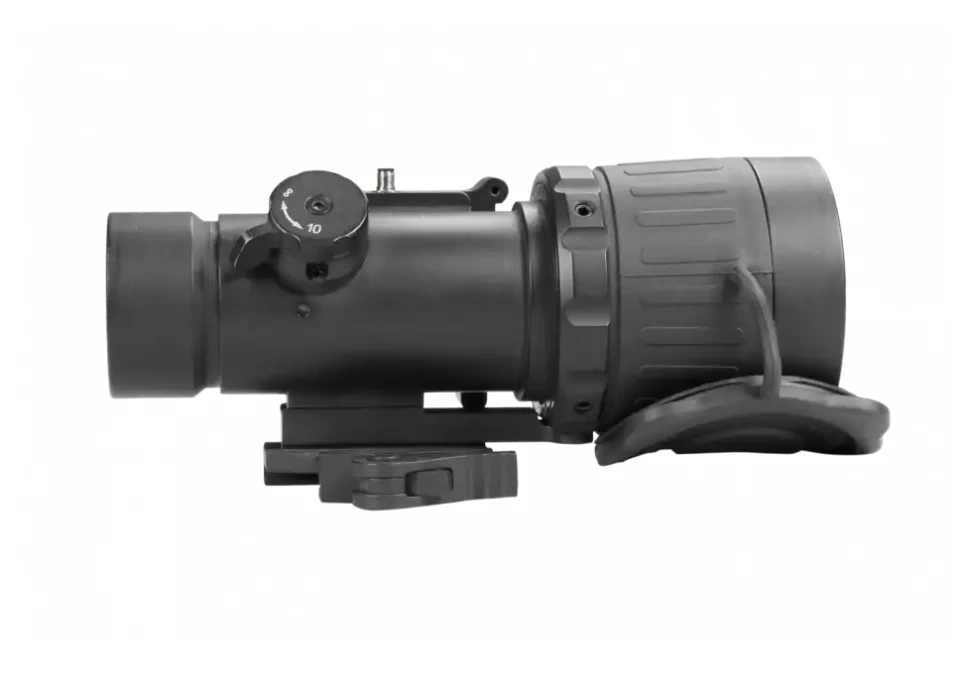

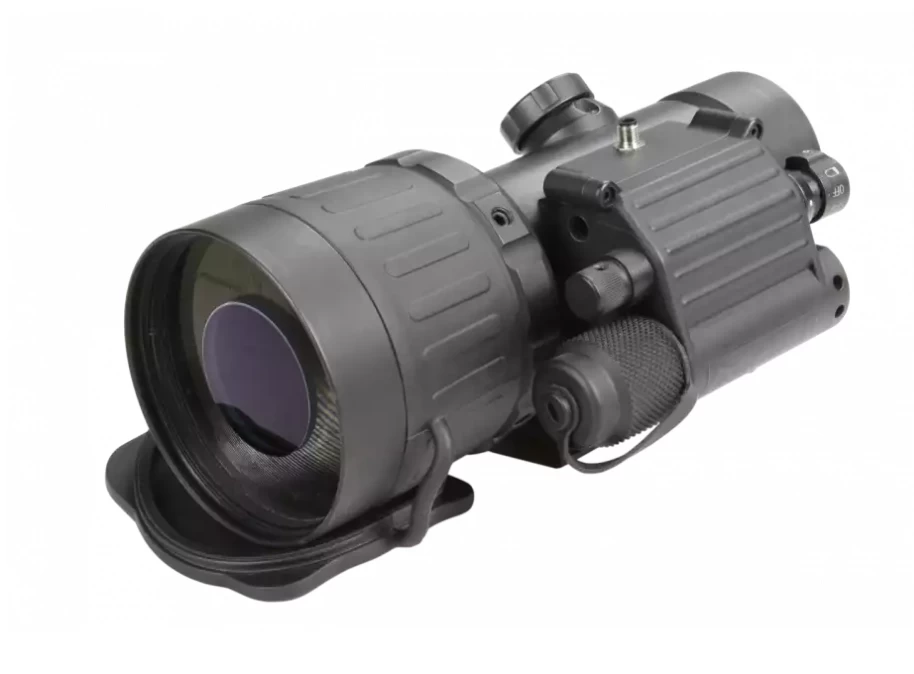

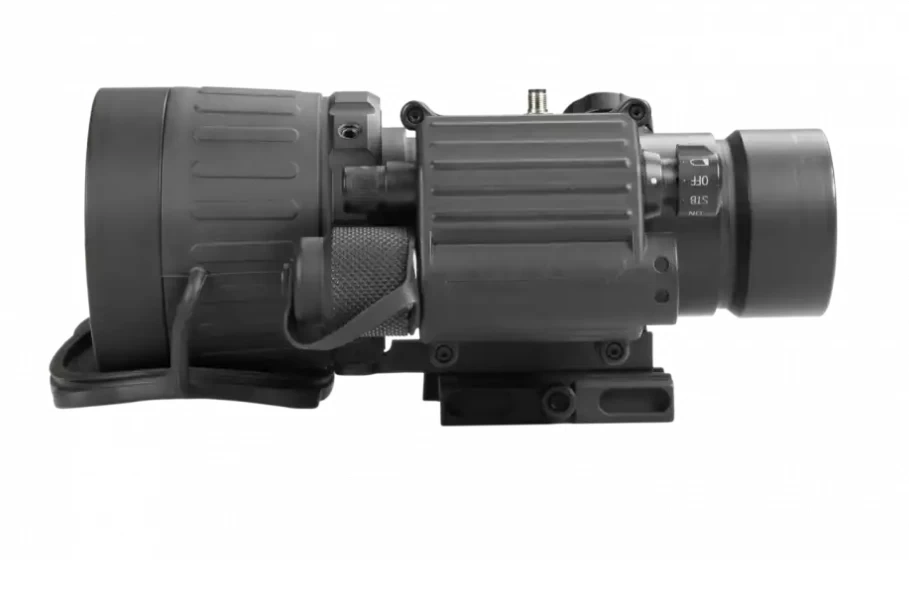

AGM Comanche-40 3AW1 Clip On Site

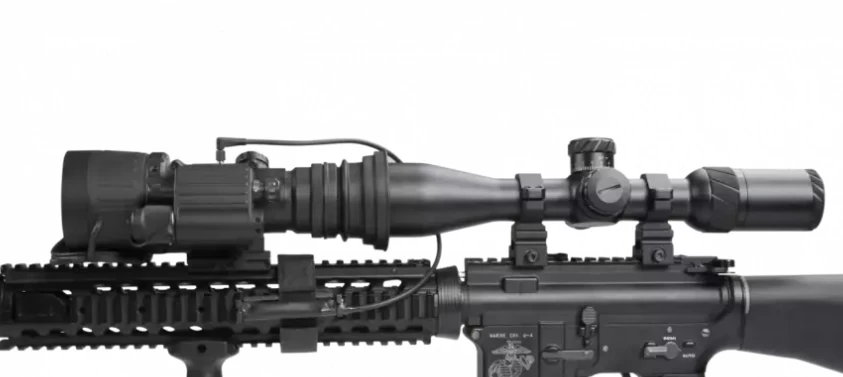

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.



SPECIFICATIONS

Image Intensifier Tube                                   Gen 3 Auto-Gated “Level 1” White Phosphor

Resolution                                                          64-72 lp/mm

Magnification                                                    1x

Lens System                                                       80 mm; F/1.44

FOV                                                                       12°

Focus Range                                                       10 m to Infinity

Controls                                                               Direct

Led Indicators                                                    Low battery; Excessive light conditions

Infrared Illuminator                                         Detachable Long Range IR Illuminator (not included)

Manual Gain Control                                       Yes

Bright Light Cut-Off                                         Yes

Automatic Shut-Off System                         Yes

Battery Type                                                      One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)                                Up to 60 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C

Exit Pupil Diameter                                          40 mm

Operating Temperature Range                   -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range                       -50°C to +50°C (-58°F to +122°F)

Weight                                                 1.04 kg (2.3 lbs)

Overall Dimensions                         189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)

Package Includes

Quick-Release Mount, Battery Adapter , CR123A Battery, Light Suppressor, Light Suppressor for Day Scope, Remote Control, User Manual, Carrying Case
